Solar Backup Application

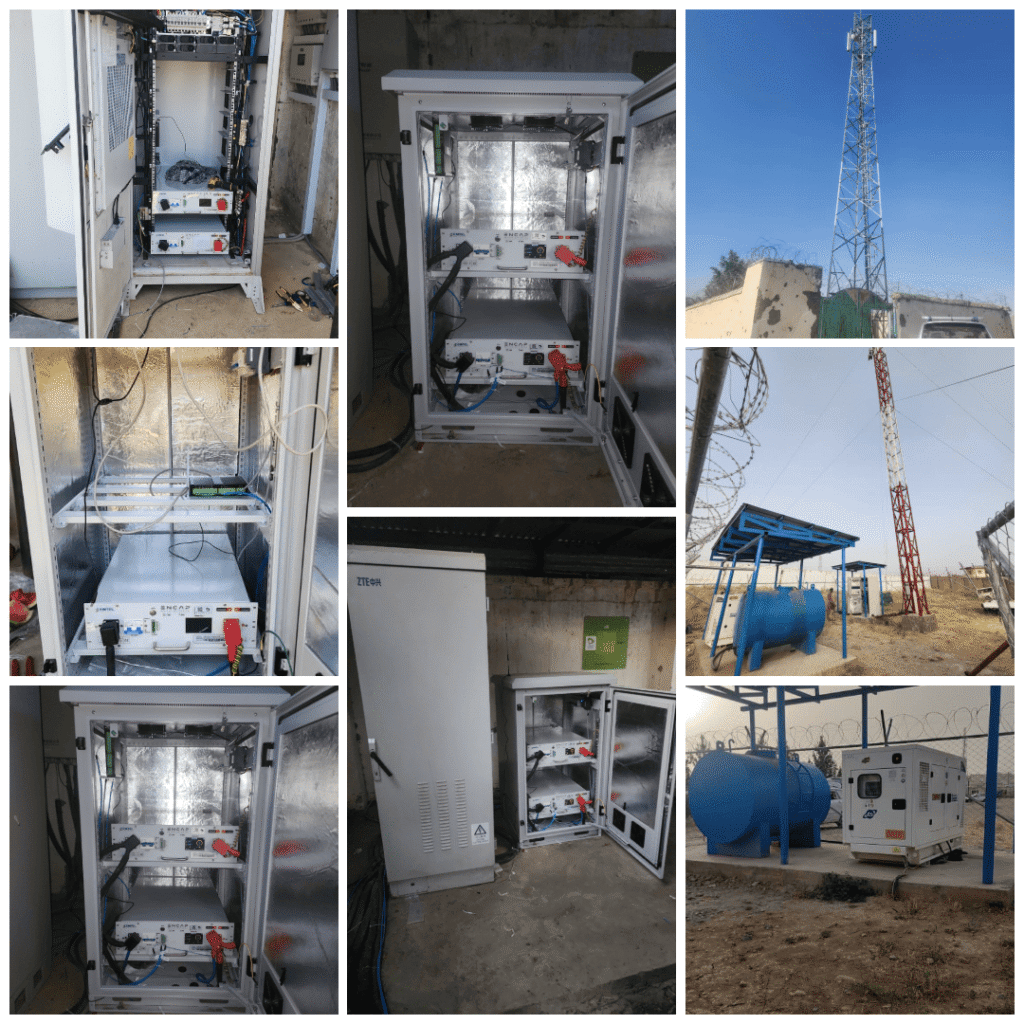

Backup Power for Hybrid BTS Sites in Afghanistan.
7.1 kWh Modules at 48V.
Location: Afghanistan.
Configuration: 7.1 kWh Encap Storage Modules.
Input Source: Solar + Generator.
Applications
Designed for extreme conditions, this energy storage system provides backup power for telecom sites at high-altitude remote sites, enduring -10°C temperatures. Solar panels charge the system in daylight, while generators support it at night.
Solar Backup Application

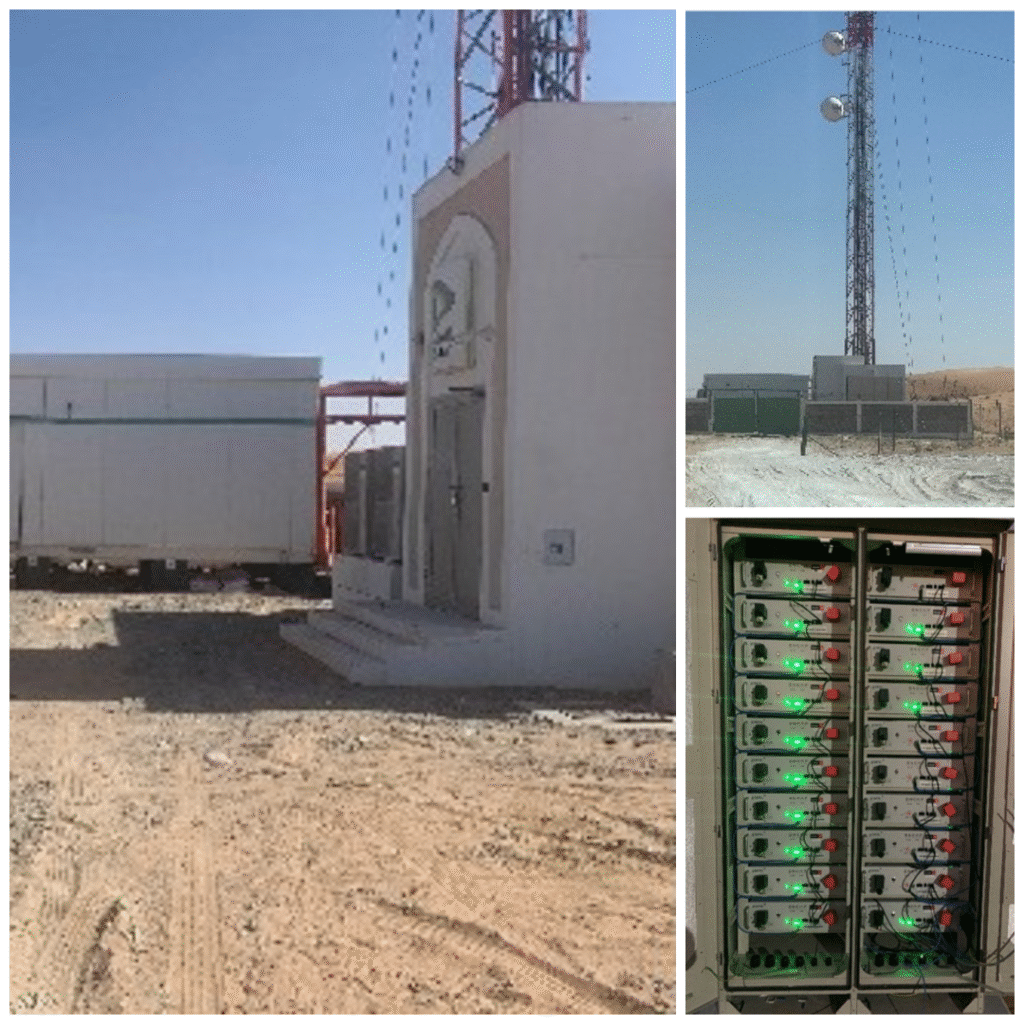

Off-Grid Solar Powered Site, UAE.
48 Hour Backup
Project 1
142 kWh at 48V.
Configuration: 142 kWh ENCAP storage, 88 kW hybrid inverter, and 110 kW solar.
Project 2
142 kWh at 48V
Configuration: 142 kWh ENCAP storage, 80 kW hybrid inverter, and 89 kW solar.
Project 3
128 kWh at 48 V.
Configuration: 128 kWh ENCAP storage, 100 kW hybrid inverter, and 110 kW solar.
Applications
Designed to provide 48 hours of backup for critical loads in remote area sites where fuel refilling and site access are challenging. During the day, solar energy charges the storage system while powering the load, and at night, the stored energy ensures uninterrupted operation with remarkably fast response time.
Power & Energy
AT&T Off-Grid Solar Site, California - USA
Spearheaded a groundbreaking project in collaboration with AT&T, focusing on enhancing the efficiency and sustainability of off-grid sites in California, USA.
The project involved the development of a sophisticated Hybrid Application system tailored to meet the specific demands of the site.
With a 6 kW DC load, the system integrated a robust infrastructure comprising a 15 kWp solar PV array, complemented by a 60 kVA diesel generator (DG) for backup power.
The heart of the system lies in the deployment of 12 cutting-edge 3.55 kWh, 48 V DC modules, totaling an impressive 42.6kWh storage capacity.
One of the primary objectives of the project was to significantly reduce DG runtime, thereby minimizing operational costs and environmental impact. Through meticulous design and optimisation, Emtel Group achieved a remarkable reduction in DG runtime, slashing it from 6 hours to a mere 50 minutes.
This achievement not only represented a substantial improvement in efficiency but also translated into tangible Opex savings for AT&T.
The Hybrid Application developed by Emtel Group stands as a testament to innovation and sustainability in the field of off-grid power solutions. By harnessing the power of renewable energy sources and advanced storage technologies, the project exemplifies a paradigm shift towards greener, more efficient energy systems, setting a new standard for off-grid site operations.
Discover Before & After of Hybrid Application at AT&T Off-Grid Solar Site, California - USA
Description
Site Location
Data
Outdoor
Load
6kW
Mode
Hybrid
DG Run Hours (Daily)
6Hrs
DG running belowi n-efficiency point consumes 1L/kWh (approx.). Therefore, Consumption (L/Month)
1,080L
Diesel Cost/Month(@USD0.56/L)
427
OPEX/ Month(USD)
1031
OPEX/Year(USD)
12,372
Description
Proposed Energy Storage
Data
42.6kWh
SIRIUSModules
12X3.55kWh
Module Voltage
48V
Sirius Module Charging Time Capacity
1.1h
Charge Cycles per Day (DG operation)
0.7
DG Run time per Day (mins)
50mins
Loads operation on SIRIUS/Day
5.2h
DieselConsumption @0.27L/kWh(L/Month)
291.6L
Diesel Cost/Month@USD0.56/L(USD)
163.3
Maintenance Cost/Month–Reduced(USD)
115.3
OPEX /Month–Reduced (USD)
278.6
278.6
OPEX/Year – Reduced (USD)
3,343.2
Power & Energy
Etisalat Off-Grid Solar Site, UAE
Partnered with Etisalat to implement a Solar Hybrid Application, transforming off-grid site operations in the UAE. By integrating a 30kVA Diesel Generator with three 7.1kWh ENCAP modules, Emtel drastically reduced DG runtime to just 6 hours. This breakthrough not only led to substantial OPEX savings but also established a new benchmark for efficiency and sustainability in off-grid telecommunications infrastructure, showcasing the power of renewable energy integration.
The project’s success underscores Emtel Group’s commitment to pioneering innovative solutions tailored to meet the evolving needs of the telecommunications industry. Through their Solar Hybrid Application, they have demonstrated the potential for renewable energy to drive cost-effective and environmentally friendly operations, setting a precedent for future advancements in off-grid site management.
Discover Before & After of Solar Hybrid Application at Etisalat Off-Grid Solar Site, UAE
Description
Site Location
Data
Outdoor
Load
4.5kW
DieselGenerator
30kVA
Mode
Off-grid
DG Run Hours (Daily)
24Hrs
DG running belowi n-efficiency point consumes 1L/kWh (approx.). Therefore, Consumption (L/Month)
3,240L
Diesel Cost/Month(@USD0.56/L)
1,814.40
MaintenanceCost/Month(USD)
245
OPEX/ Month(USD)
2,059.40
OPEX/Year(USD)
24,712.80
Description
Proposed Energy Storage
Data
21.3kWh
SIRIUSModules
3 X 7.1kWh
Module Voltage
48V
Sirius Module Charging Time Capacity
35mins
Actual Charging Time of Sirius per Cycle Based on Available DG Capacity
1.4 hours
Charge Cycles per Day (DG operation)
4
DG Run time per Day (hours)
5.6
Loads operation on SIRIUS/Day
18.4Hrs
DieselConsumption @0.27L/kWh(L/Month)
1,193.25
Diesel Cost/Month@USD0.56/L(USD)
668.22
Maintenance Cost/Month–Reduced(USD)
125
OPEX /Month–Reduced (USD)
793.22
OPEX/Year – Reduced (USD)
9,518.64
Power & Energy
Globe Telecom Cell Site - Philippines
The project’s success underscores Emtel Group’s commitment to pioneering innovative solutions tailored to meet the evolving needs of the telecommunications industry. Through their Solar Hybrid Application, they have demonstrated the potential for renewable energy to drive cost-effective and environmentally friendly operations, setting a precedent for future advancements in off-grid site management.
Discover Before & After of Backup Application at Globe Telecom Cell Site, Philippines
Description
Site Location
Data
Outdoor
Load
4.5kW
DieselGenerator
30kVA
Mode
Off-grid
DG Run Hours (Daily)
24Hrs
DG running belowi n-efficiency point consumes 1L/kWh (approx.). Therefore, Consumption (L/Month)
3,240L
Diesel Cost/Month(@USD0.56/L)
1,814.40
MaintenanceCost/Month(USD)
245
OPEX/ Month(USD)
2,059.40
OPEX/Year(USD)
24,712.80
Description
Proposed Energy Storage
Data
21.3kWh
SIRIUSModules
3 X 7.1kWh
Module Voltage
48V
Sirius Module Charging Time Capacity
35mins
Actual Charging Time of Sirius per Cycle Based on Available DG Capacity
1.4 hours
Charge Cycles per Day (DG operation)
4
DG Run time per Day (hours)
5.6
Loads operation on SIRIUS/Day
18.4Hrs
DieselConsumption @0.27L/kWh(L/Month)
1,193.25
Diesel Cost/Month@USD0.56/L(USD)
668.22
Maintenance Cost/Month–Reduced(USD)
125
OPEX /Month–Reduced (USD)
793.22
OPEX/Year – Reduced (USD)
9,518.64
Telkomsel - BTS Site - Indonesia (KALIMANTAN and SUMATRA)
Mobilink Telecom - BTS Site - Pakistan
PTCL - BTS Site - Pakistan
Viettel - BTS Site - Vietnam
Angola Telecom Site - Angola, South Africa
SOLAR + STORAGE CASE STUDIES
Matoya Fishing Lodge - Zambezi River - Zambia
Sirius Energy Storage: 42.6kWh (6 x 7.1kWh units)
Hillcrest - South Africa
Sirius Energy Storage: 42.6kWh (6 x 7.1kWh units)
Pretoria Residence, Pretoria - South Africa
Sirius Energy Storage: 14.2kWh (4 x 3.55 kWh units) Application: Charging from PV and providing power to the house
Heidelberg Kloof - South Africa
Sirius Energy Storage: 35.50kWh (10 x 3.55kWh Units)
Aiden Nelson- New Zealand
Andrzej Suchanski - New Zealand
Auckland – New Zealand
Sirius Energy Storage: 7.1kWh Units
Sirius Energy Storage: 3.55kWh Units
Residential Customer - Australia
Rockhampton - Australia
Recreational Center - Fujairah, UAE
Sirius Energy Storage: 2 x 7.1kWh Units
Residential Customer - Canada
Electric Power Research Institute - USA
Quaoar Solutions- Manati, Puerto Rico
Residential, Sahiwal - Pakistan
Sirius Energy Storage: 35.5 kWh (5 x 7.1kWh Units)
Tajsol Industries - Pakistan
Sirius Energy Storage: 14.2kWh (4 x 3.55kWh Units)
MICROGRID CONTAINER CASE STUDIES
Containerized Solution
- In 2020 we supplied a Containerized Microgrid Solution for a off-grid Solar PV powered cabin in Popular National park in USA.
- The Microgrid consisted of a 20ft container with 208 kWh of Sirius Energy Storage and 20kW Energy Server with PV Input.
- In 2022 due to flooding incident , all other microgrid solutions with other technologies in the Park either failed or turned off…. other than the Sirius Supercap Containerized System
Popular National park in USA
40’ft Container – NEOM – Saudi Arabia, KSA
Containerized Solution
40’ft Container – NEOM – Saudi Arabia, KSA
10’ft Container - Island – UAE
20’ft Container - NTI Hospital - Papua New Guinea
20’ft Container - Nokon Village Namatanai - Papua New Guinea
